Description
Brand: Texas Instruments

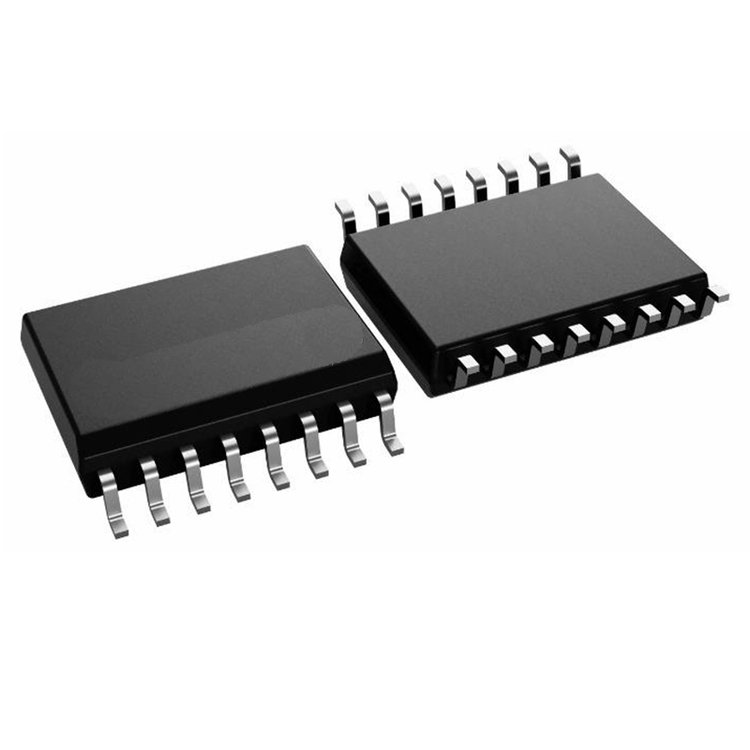

Package: SSOP-16_150mil
Batch number: 22+
Quantity: 20000
Manufacturer: Texas Instruments
Product Type: Digital Isolator
RoHS: Yes
Installation style: SMD/SMT
Package / Box: SSOP-16
Series: ISO7141CC
Number of channels: 4 Channel
Polarity: Unidirectional
Insulation voltage: 2.5 kVrms
Isolation Type: Capacitive Coupling
Data rate: 50Mb/s
Propagation Delay Time: 23 ns
Supply Voltage – Max: 5 V
Supply Voltage – Min: 2.7 V
Working power supply current: 14 mA
Minimum operating temperature: – 40 C
Maximum operating temperature: +125 C
Input type: CMOS, TTL
Output type: CMOS
Shutdown: No Shutdown
Forward channel: 3 Channel
Humidity Sensitivity: Yes
Operating supply voltage: 2.7 V to 5 V
Pd-power dissipation: 150 mW
Reverse channel: 1 Channel
Unit weight: 130 mg
Available for sale: the whole country
Model: ISO7141CCDBQ
